PRODUCT GUIDE
DISTINCTIVE AND UNIQUE FOR SOPHISTICATED ADVERTISING

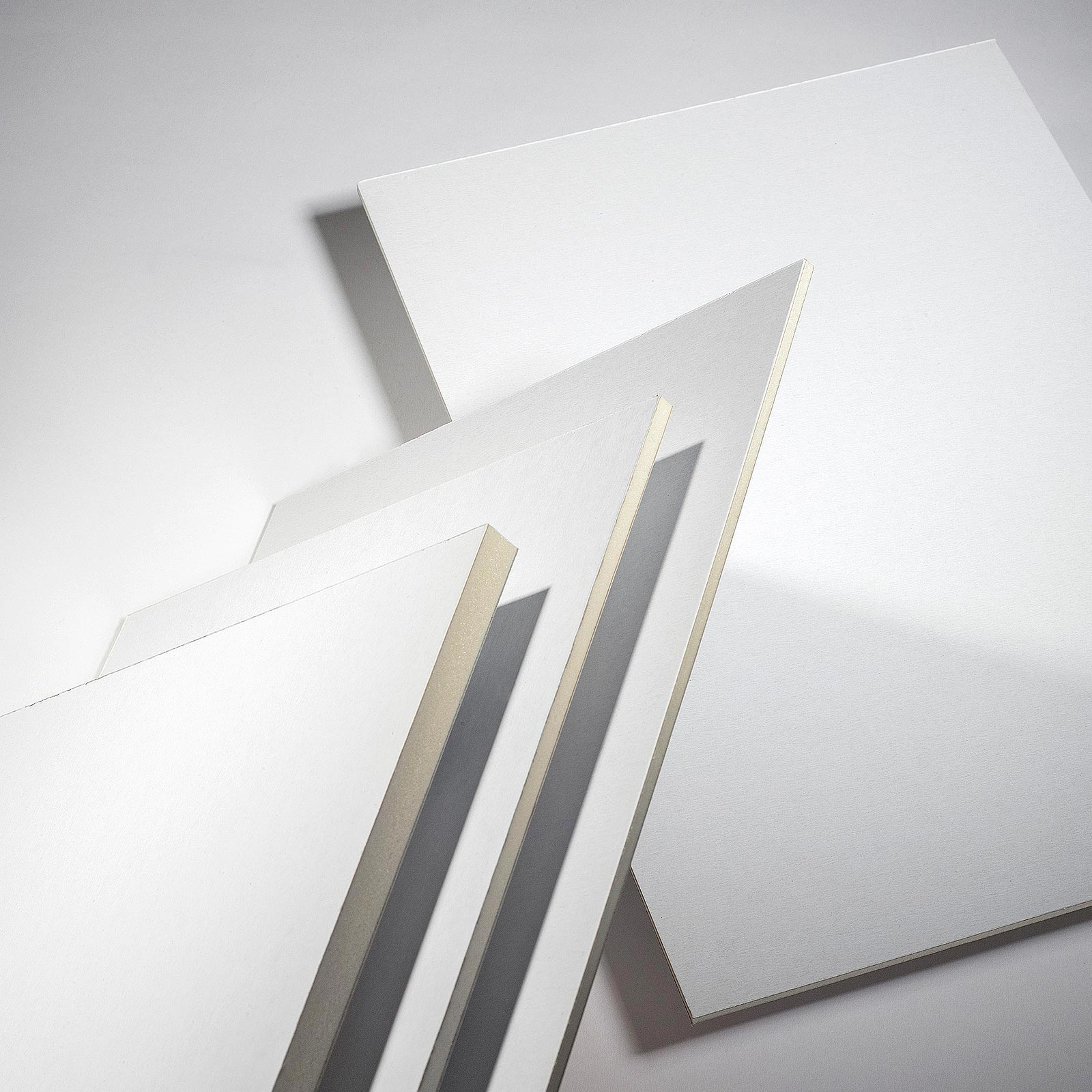

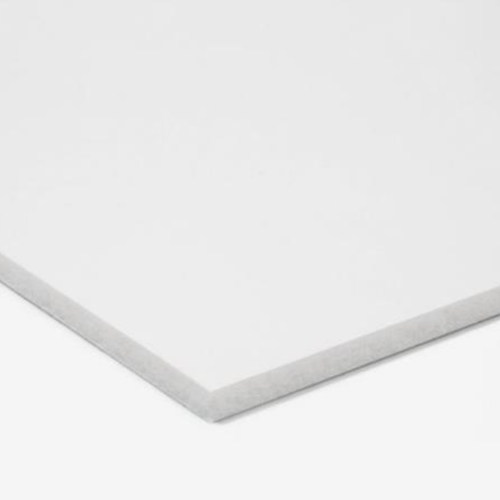

A lightweight foamboard with impact-resistant solid polystyrene (HIPS) on both sides and an extruded polystyrene foam core.
LUFOAM®PS-X is a distinctive lightweight foamboard for demanding visual communication applications.
This extremely lightweight foamboard with weather and UV-resistant cover layers in impact-resistant solid polystyrene (HIPS) and a core of expanded polystyrene is completely insensitive to moisture. These properties mean that it is a lightweight material which can be used in outdoor applications for a period of up to two years without significant colour change.
LUFOAM®X is also an optimal substrate for direct digital printing due to its smooth surface structure and availability in large formats (up to 1.5 meters wide).
Thanks to the excellent ratio of extremely low weight and high rigidity and flatness,LUFOAM®X is ideal for the following two-dimensional applications: All types of signage, self-supporting, free-standing structures, life-sized fashion displays.
| LUFOAM®PS-X | ||||||
| HISP film thickness options | mm | 0.12 | 0.14 | 0.16 | 0.18 | |
| Thickness | mm | 3 | 5 | 10 | 15 | |
| Core weight per unit area | EN 29073-1 | g/m2 | 180 | 200 | 380 | 600 |
| Sheet sizes | mm | 1220*2440, 1520*3050 or customize | ||||
| Max. service temperature | °C | up to 70°C | ||||
| Sheet length tolerance | mm | ±1-10 | ||||
| Sheet thickness tolerance | ±0.6 | |||||
| CORE | ||||||
| Foam core | polystyrene foam | |||||
| Closed cell structure | % | >95 | ||||
| Surface | ||||||
| Layers | Coated impact-resistant solid polystyrene(HIPS) | |||||
THE OUTDOOR AND INDOOR FOAMBOARD WITH IMPACT-RESISTANT SOLID POLYSYRENE LAYERS
| CHARACTERISTICS ◼ High stability and very low weight ◼ Very good resistance to weathering-with high UV stability ◼ and humidity resistance, no deformation ◼ Refined surface structure ◼ Brilliant printing results with direct digital printing ◼ Also available in 2 metres width ◼ Temperature resistance from -10’C up to +70°C ◼ Low resistance during contour milling |
 |
| APPLICATIONS ◼ Displays (POS/POP) ◼ Signage l Lettering ◼ Corporate ldentity ◼ Shop design l Shop window decoration ◼ Interior design | Furniture ◼ Partitions l Cladding ◼ Exhibition design and construction ◼ Short term promotional campaigns |
 |
| PROCESSING ◼ Digital printing l Screen printing ◼ Laminating ◼ Painting l Spray painting ◼ Lacquering ◼ Contour milling ◼ Laser cutting ◼ Sawing ◼ Gluing ◼ Drilling ◼ Screwing ◼ Folding (V-groove) l Cold bending STANDARD COLOUR ◼ White |
 |
