Luplast industries-LUFOAM®PS-P

PRODUCT GUIDE

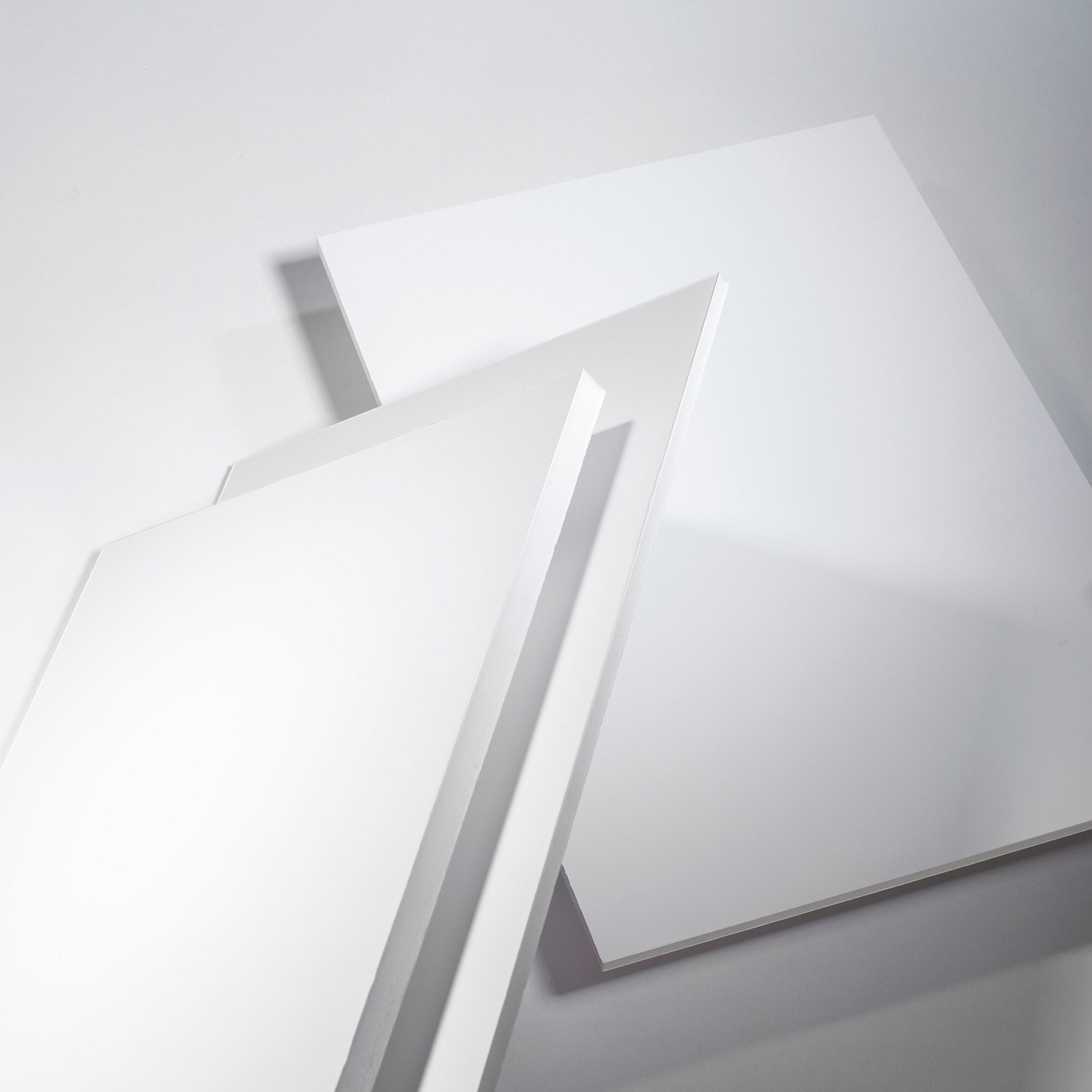

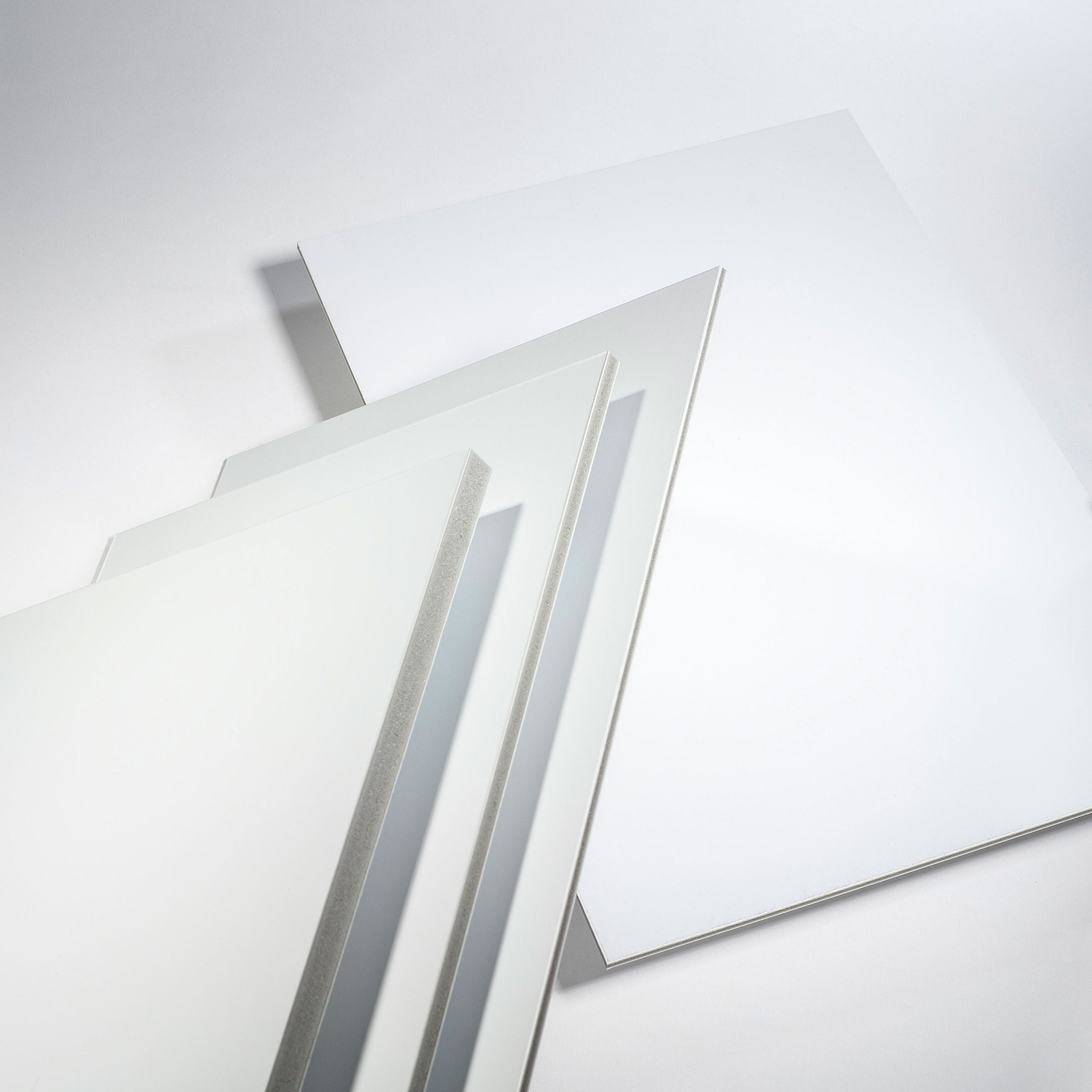

THE INDOOR FOAMBOARD WITH WHITE ART PAPER COVER LAYERS

a lightweight foamboard with bright white paper facers on both sides and an extruded polystyrene foam core.

Thanks to the special paper facers, LUFOAM®PS-P is an ideal printing substrate and is particularly suitable for printing machines using water-based inks.

The foamboard shows noticeable performance benefits including a more precise dot placement, higher contrast black, crisper text and graphics, greater color saturation, and sharper lines.

DIMENSIONS AND WEIGHT
Paper weight per unit area		g/m2	128	158	208
Thickness		mm	3	5	10
Core weight per unit area	EN 29073-1	g/m2	170	190	360
Sheet sizes		mm	12202440, 15203050 or customize
Sheet width tolerance		mm	±1
Sheet length tolerance		mm	±1-10
Sheet thickness tolerance		mm	±0.6
Tolerance in right angle		mm/m	±1
CORE
Foam core			polystyrene foam
Closed cell structure		%	>95
Surface
Layers			Coated art papers on both sides
Technological values
Compression strength10% compression set	DIN 53421	N/mm2	-0.1	-0.17	-0.35
Elastic modulus (E-Modul)	DIN 53421	N/mm2	-1.5	-2.8	-5
Bending strength	DIN 53423		-4	-2.9	-2.1
pH-value(Neutral=7)	DIN 53424		8.8

THE INDOOR FOAMBOARD WITH WHITE ART PAPER COVER LAYERS

CHARACTERISTICS

◼ Coated multi layered recycled paper cover layers
◼ Ideal weight stability ratio
◼ For short-term, simple indoor applications
